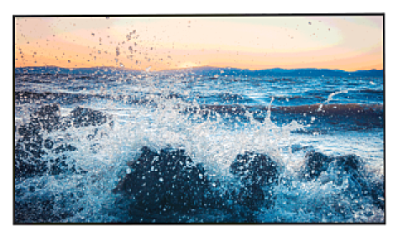

Dahua LDH65-HAI400K 65" Wall-mounted Digital Signage | LDH65-HAI400K

Buy Dahua LDH65-HAI400K 65" Wall-mounted Digital Signage | LDH65-HAI400K

High quality panel, industrial-grade design, full metal casing.

Dahua MPS platform provides unified remote management for system integrators and media operators.

Strong 4 core processor provides powerful decoding capabilities, enabling premium display performance.

Multiple installation modes satisfy a broad range of project requirements.

Built-in media player software and USB player provide multiple methods to play contents.

Technical Specs:

Display Model : LDH65-HAI400K

Backlight : LED

Screen Size : 65"

Aspect Ratio : 16:9

Resolution : 3840×2160

Display Colors : 1.07B(10 bits)

Brightness : 700 cd/m²

Contrast Ratio : 1200:1

Viewing Angle(H×V) : 178°/178°

Display Mode : Landscape/Portrait

Response Time : 8ms

Connectivity

Input : RJ45 ×1, USB ×2, TF Slot ×1, HDMI ×1, Audio In×1

External Control : RJ45(LAN), USB

Wi-Fi : Optional

Speaker : 5W×2

Smart Signage Platform : Media Publish System 3.0

Power & Environmental Conditions

Power Supply : AC100-240V, 50/60Hz

Type : Internal

Consumption(Typical) : 200W

Consumption(Standby) : Less than 0.5W

Operating Temperature : 0℃~+40℃ （32℉~104℉)

Operating Humidity : 10%~85%

Mechanical Specification

Dimensions : 1448x823.5x66.8mm

Package : 1639x227x1015mm

Bezel Width : 8mm

Net Weight : 37kg

Gross Weight : 55kg

Accessory

Included in Box : Power cord, VESA bracket

VESA Mount : 400mm × 400mm

Internal Player

Processor : Quad-core Cortex-A17 up to 1.6GHz

Operating System : Android 8.1

RAM : 2GB

Storage : 16GB

Material Type : Video, audio, image, time, weather, countdown, txt, web page, stream media, pdf

Video : mp4,avi,mov,asf,wmv,mkv

A single file can upload up to 2G, and the resolution cannot exceed 4K

Audio :

mp3,wma,wav

A single file can upload up to 500M

Image : jpg,jpeg,gif,bmp,png [ A single file can upload up to 30M, and the resolution cannot exceed 4K ]

Documents :

pdf, doc, docx, ppt, pptx, xls, xlsx and txt.

A single filecan can upload up to 200 MB

Decoding Capacity :

1CH H265 4K@60/2CH H264 4K@25/2CH H265 1080P@30&2CH H264 1080P@25/4CH H265 1080P@30/2CH H264 1080P@25
